ML-7 series by DRSA offers 7-inch LED marine recessed downlights
Description
Description

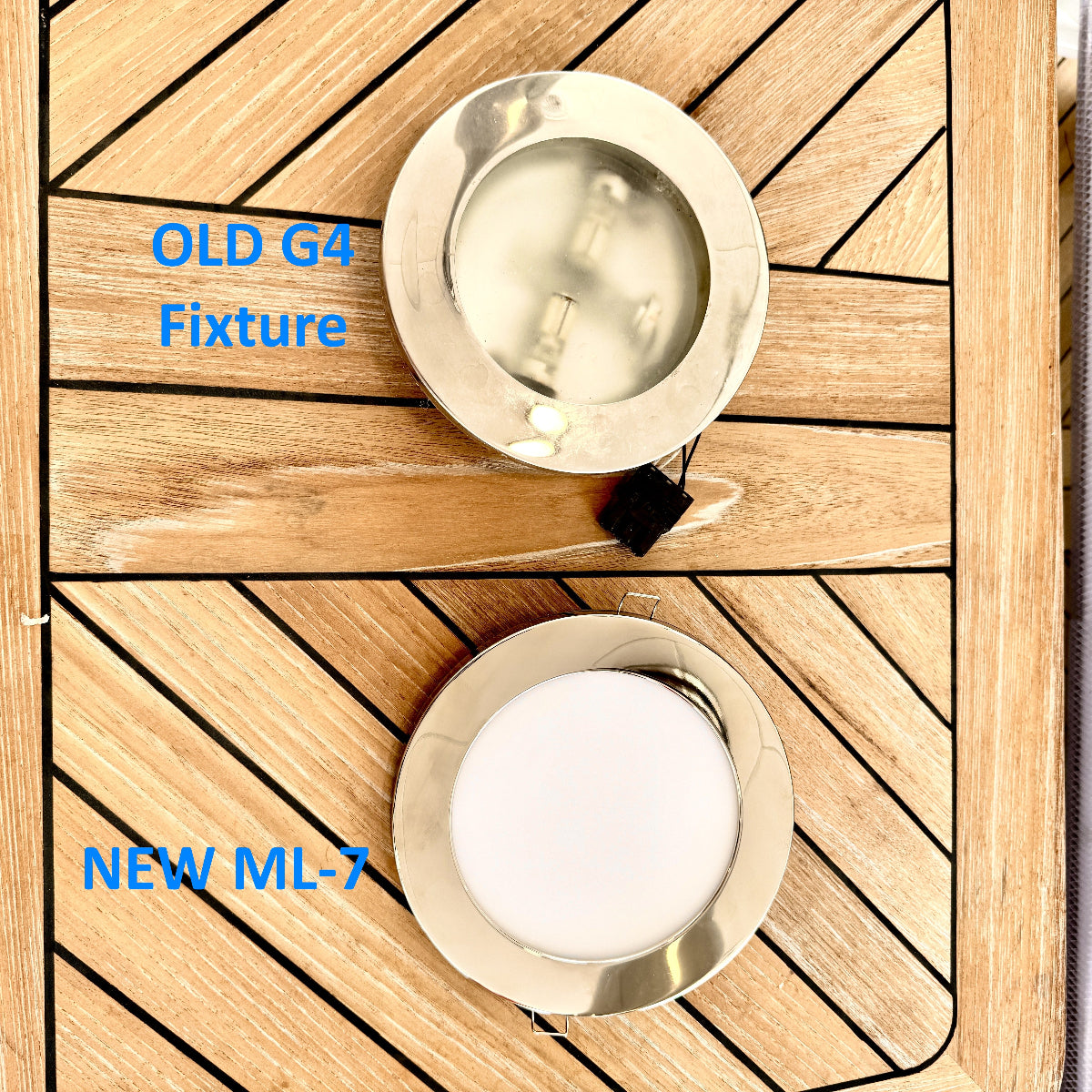

The ML-7 series by DRSA offers 7-inch LED marine recessed downlights designed to replace traditional 180mm fixtures. These downlights are ideal for both interior and exterior marine applications, providing versatility and durability.
Key Features:
- Models: ML-7M (Modern Trim) and ML-7T (Traditional Trim)
- Voltage: 12-24V system (10/30V range)
- Wattage: 12W
- LED Type: SMD LEDs
- Lumen Output: 790 lumens
- Beam Angle: 120°

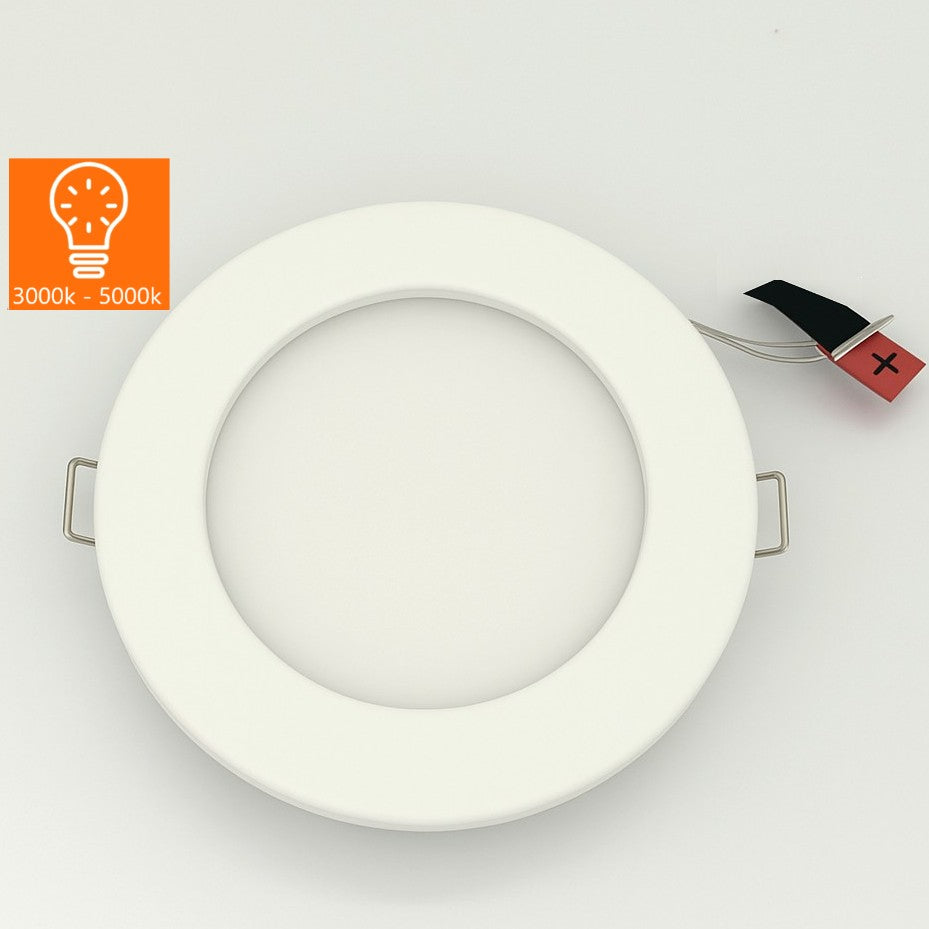

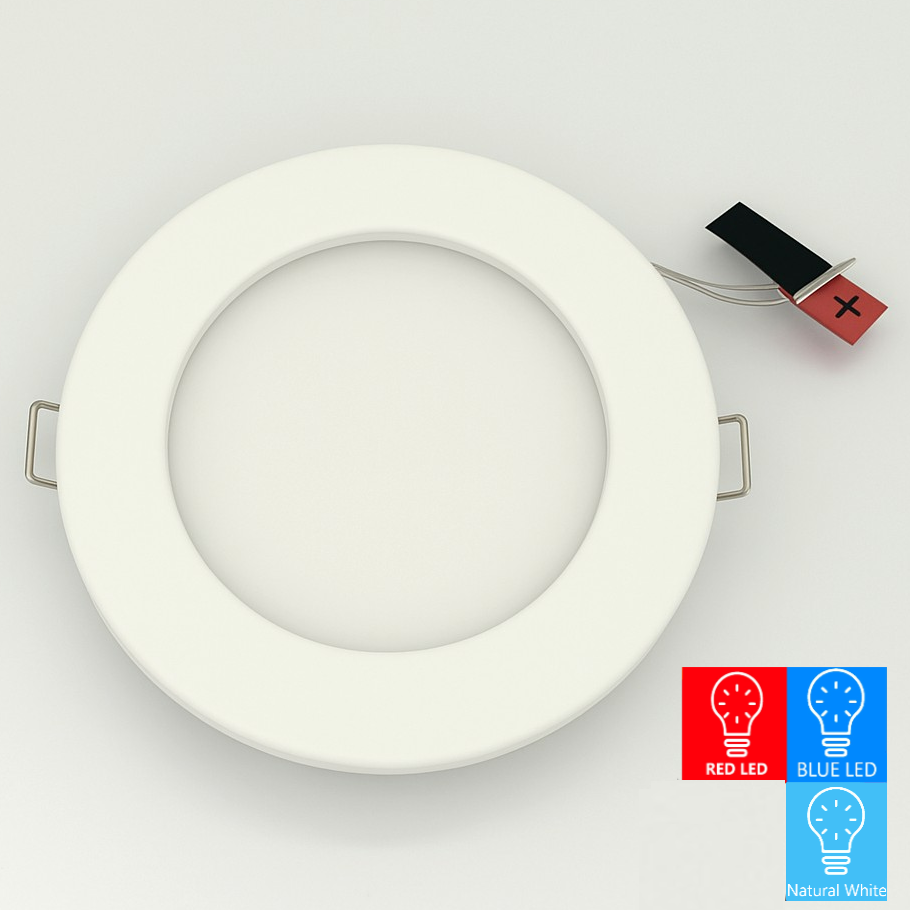

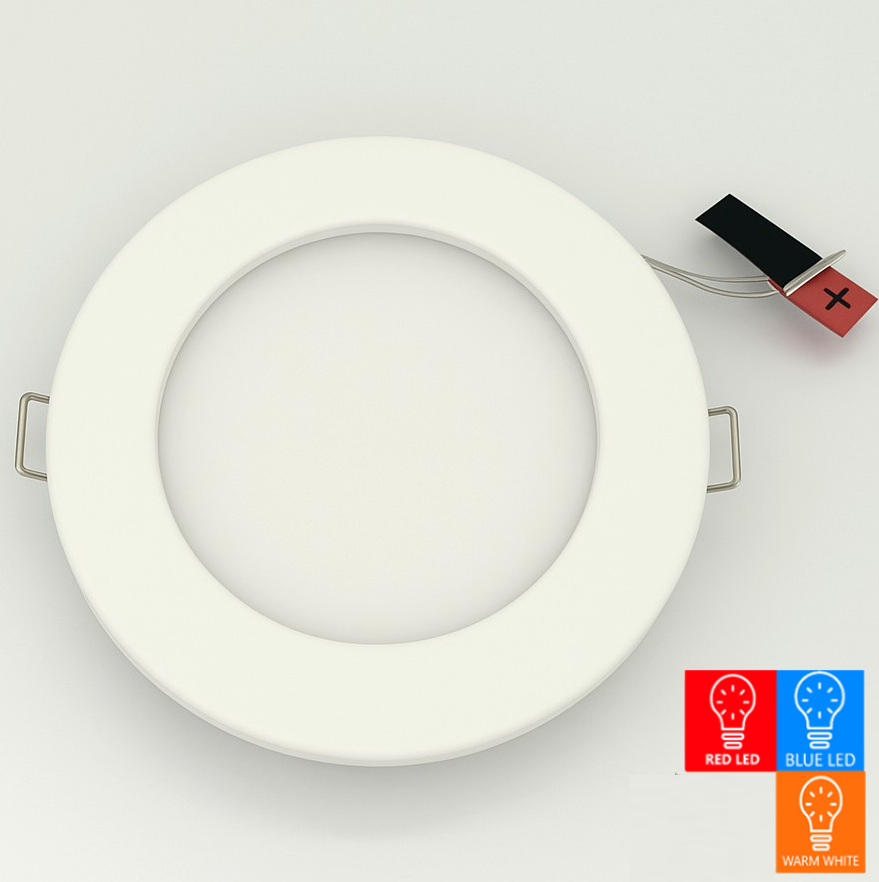

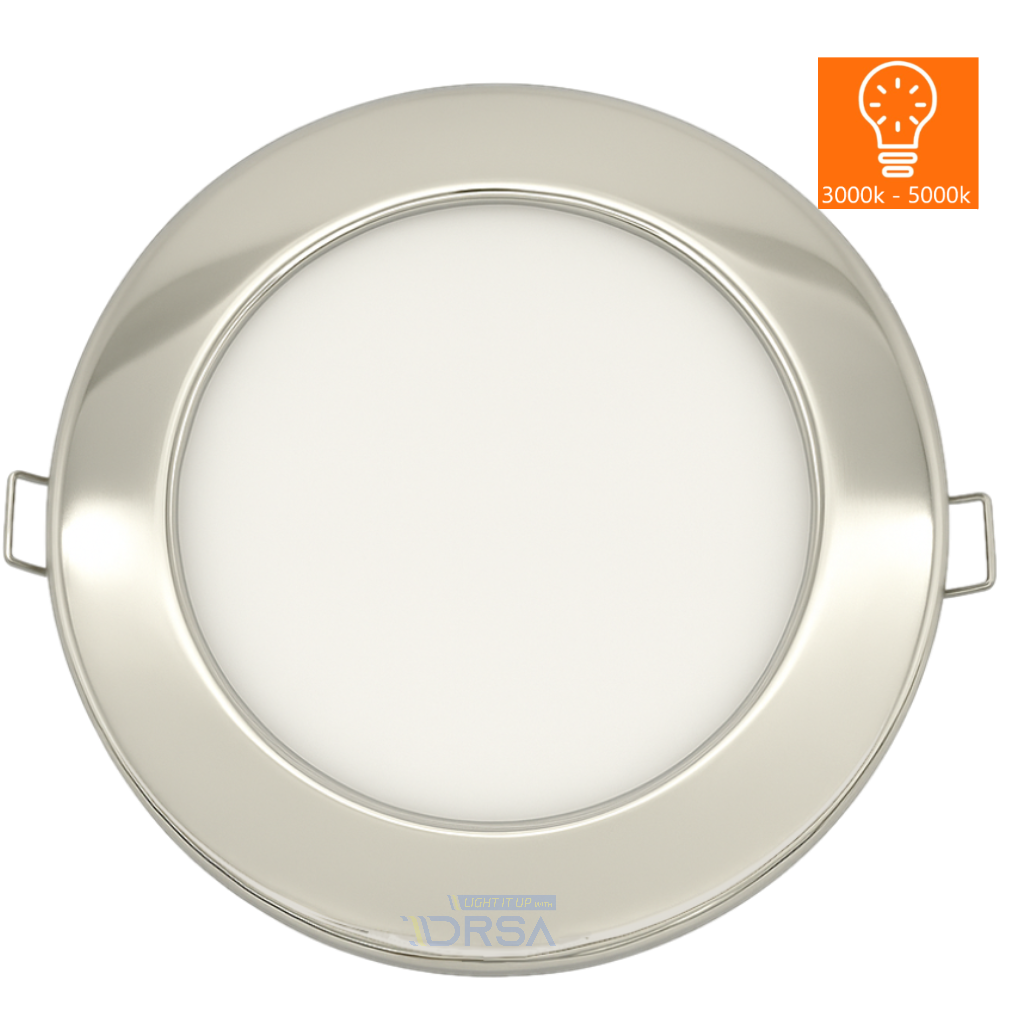

- Color Temperature (CCT): Selectable 3000K, 4000K, or 5000K, or RBW
- Dimming Capability: TRIAC/ELV dimming from 10% to 100%
- Lifespan: 50,000 hours
- Ingress Protection: IP65 for the surface and IP54 for the back
- Materials: 316 stainless steel, polycarbonate, and aluminum
-

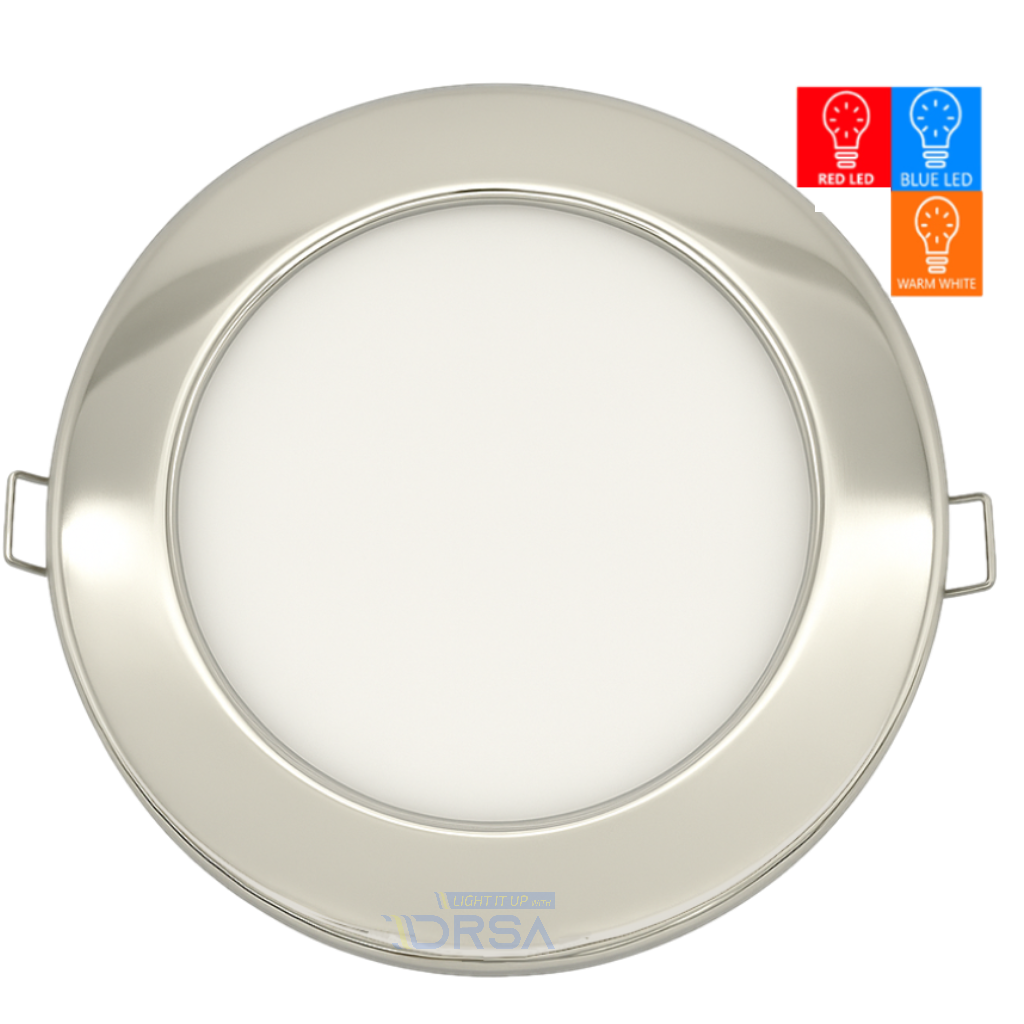

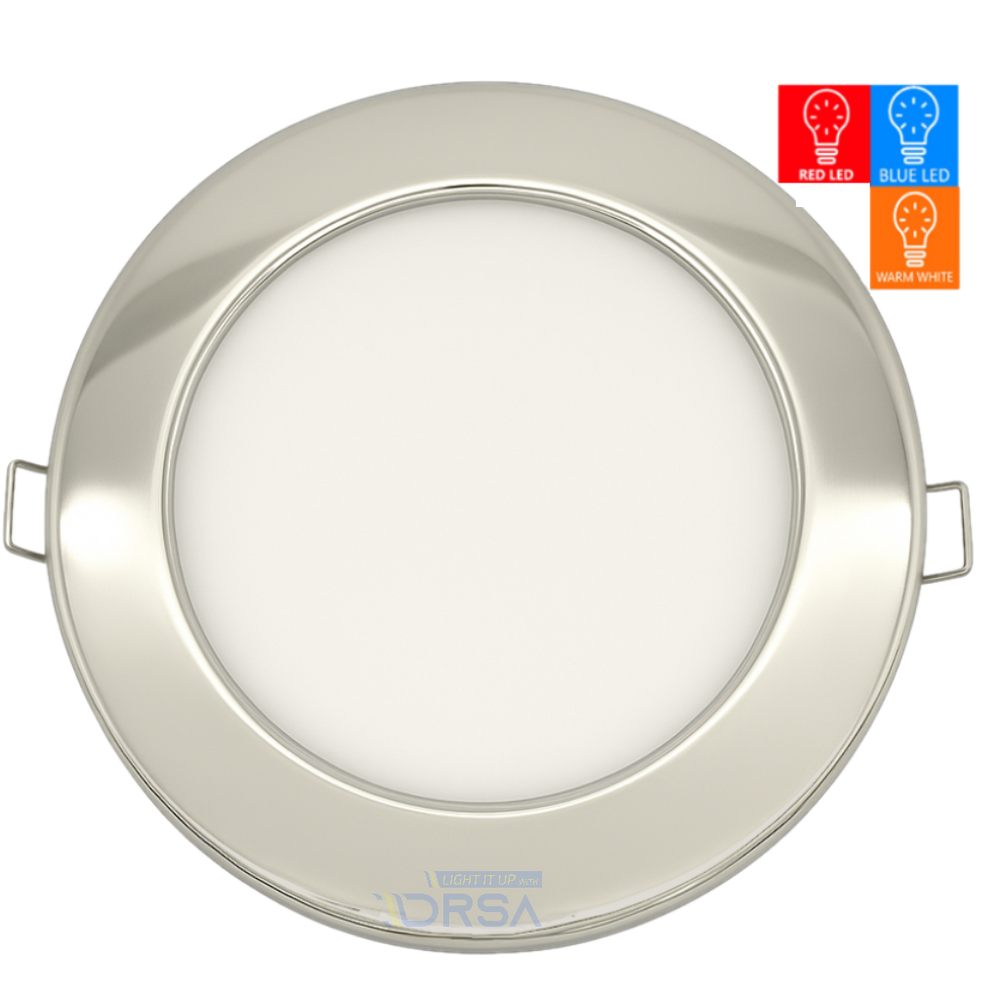

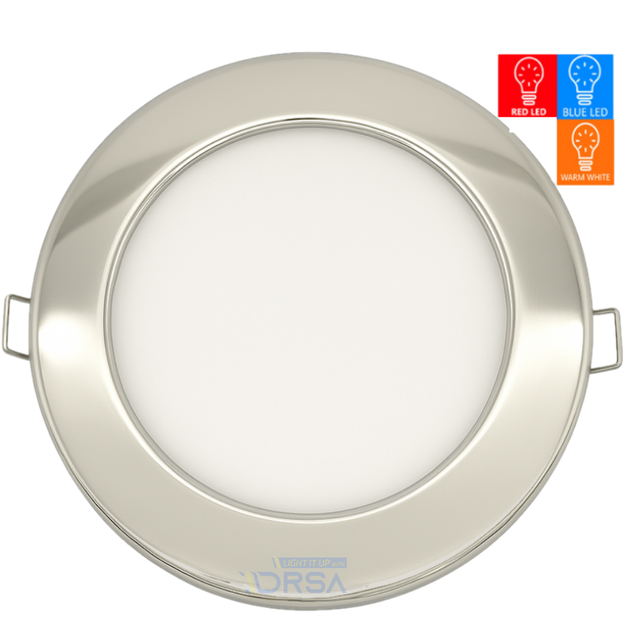

Finish Options: Polished stainless steel or powder-coated white (RAL9010)

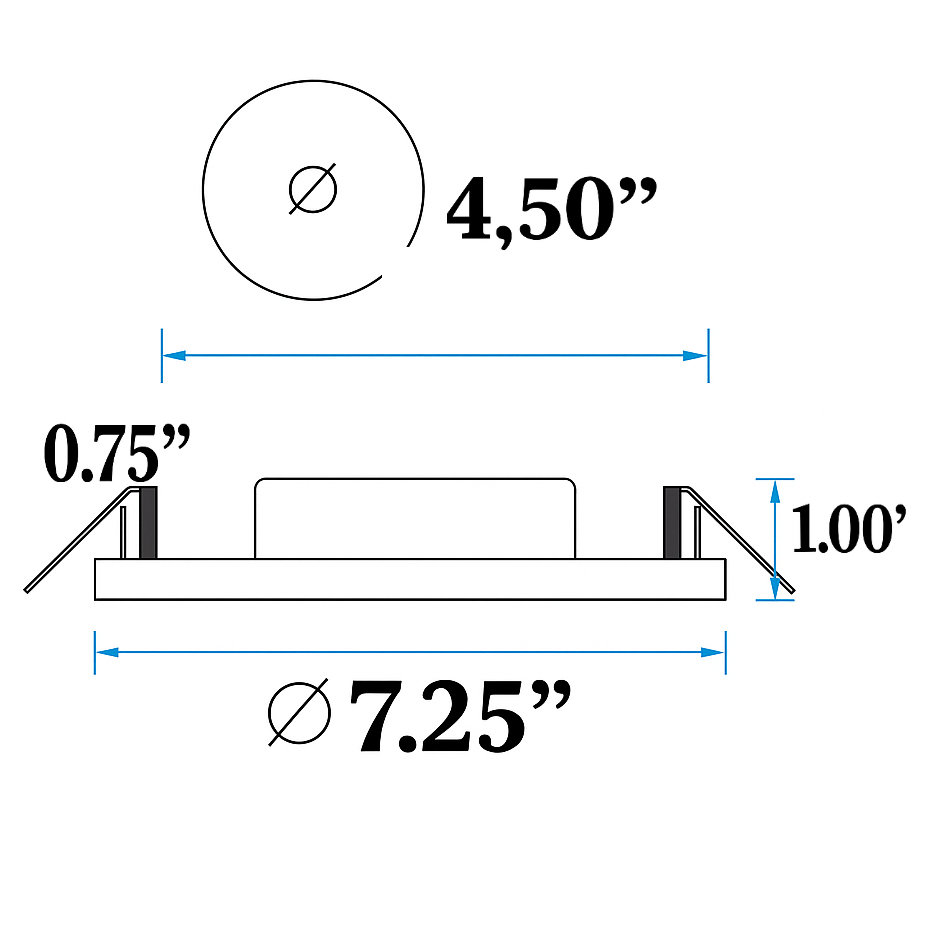

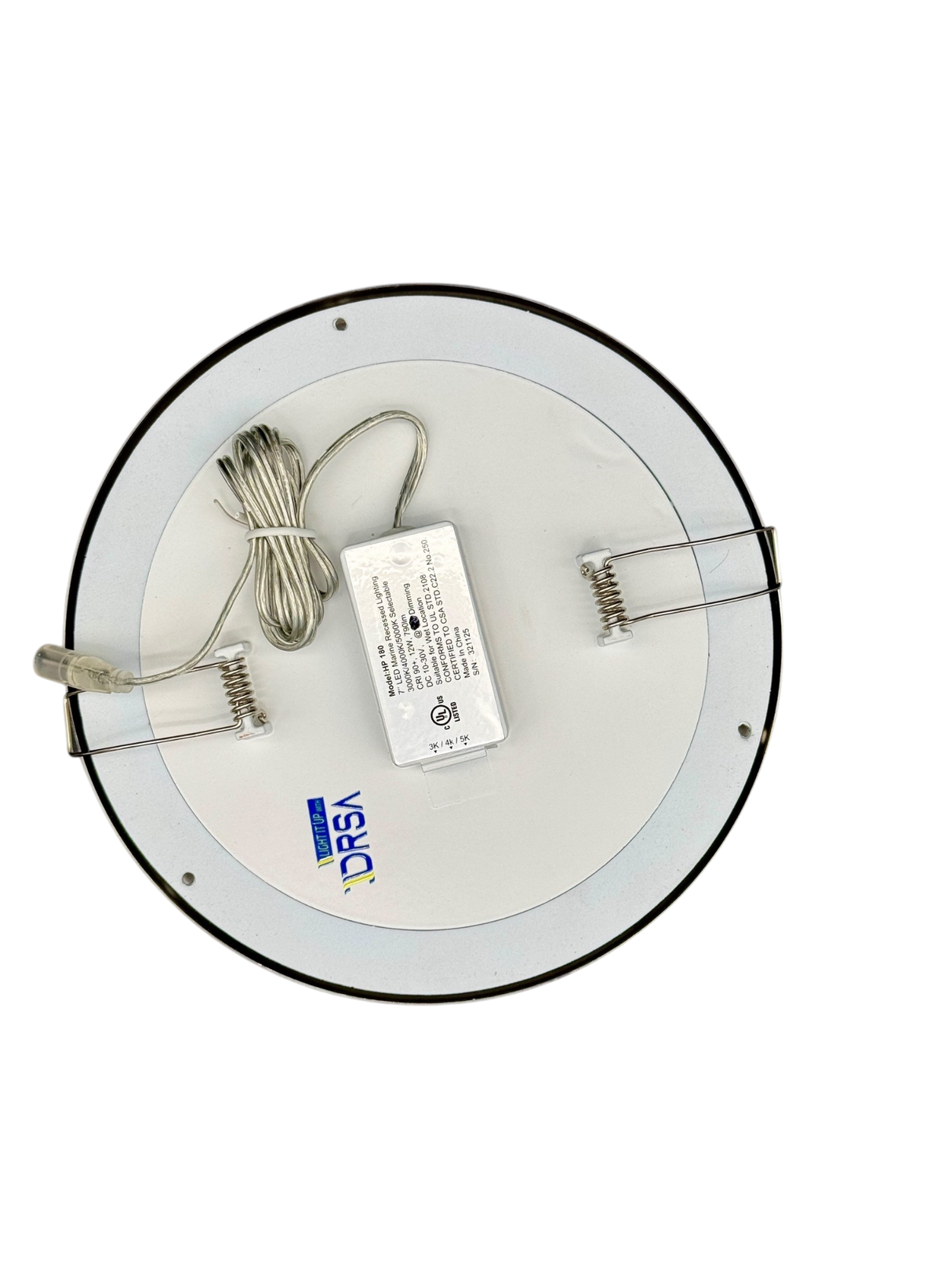

Each fixture includes a 35½-inch waterproof connector cable, stainless steel mounting screws, and a 2mm thick EVA waterproof sealing ring for secure installation. The product dimensions are Ø7.25” x 1.00”H with a cutout size of Ø4.50”.
Please refer to the official product datasheet for more detailed information, including wiring diagrams and installation instructions.
