Lumishore- Abovewater LED Spot Light 40"
Description
Description

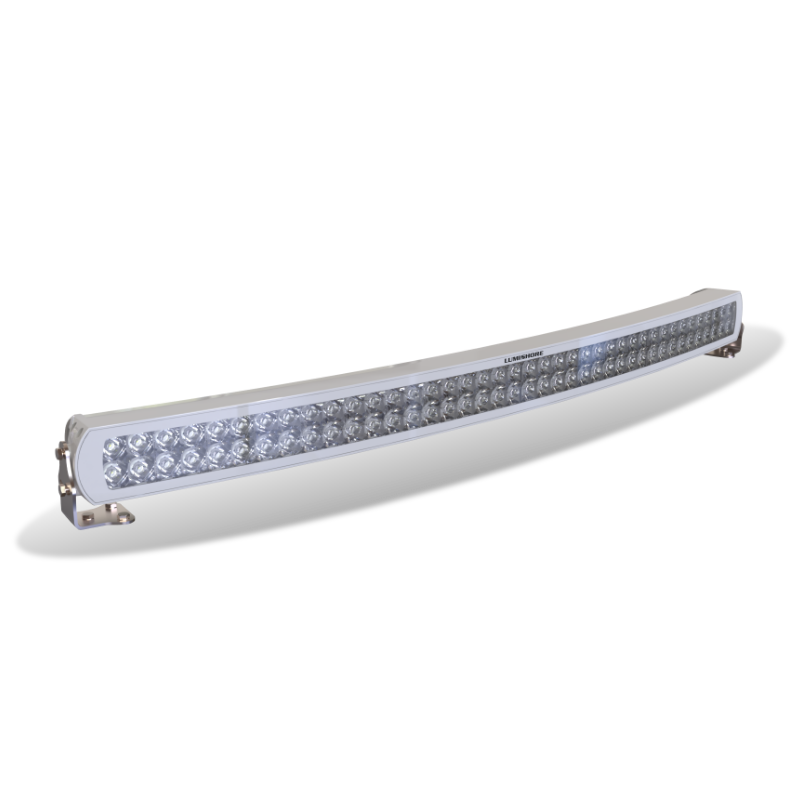

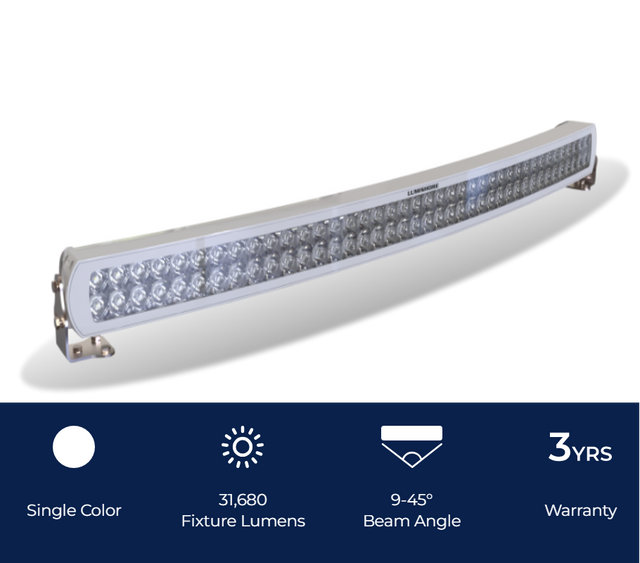

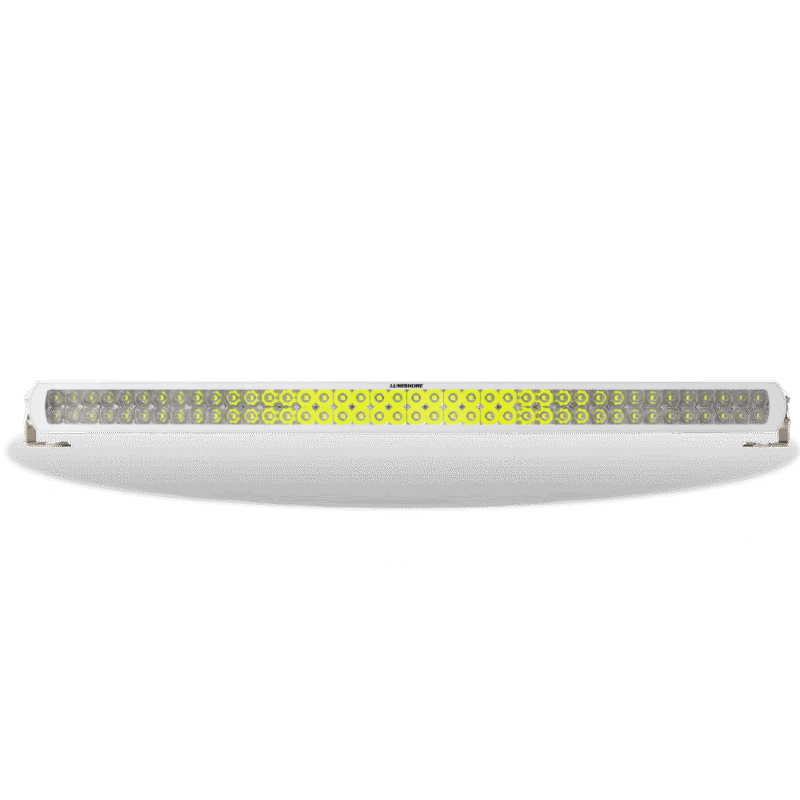

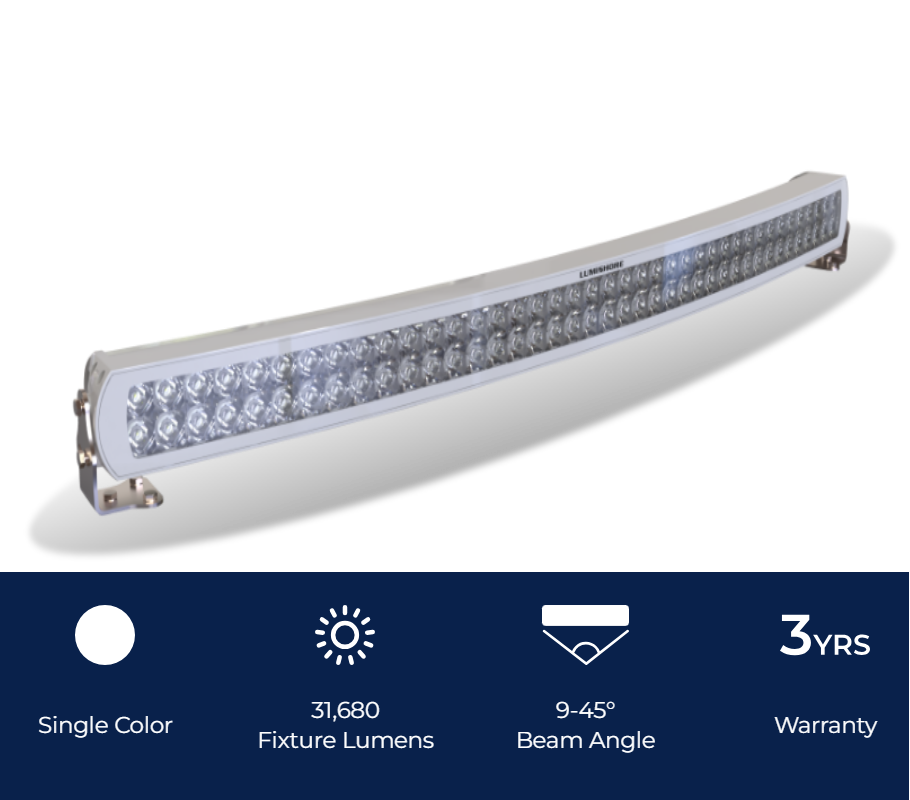

Single Color Light Bar 40" - White
The 40" Lumishore Light Bar is a top-tier lighting solution designed for maximum performance and durability in marine environments. Delivering 31,680 fixture lumens of crisp, white light, it provides unparalleled illumination for decks, T-Tops, fishing towers, and bow platforms, ensuring safety and visibility in any condition.
Key Features
1. Exceptional Brightness & Light Distribution
- 31,680 fixture lumens deliver powerful white illumination.
- 9° vertical x 45° horizontal beam angle ensures wide and even light spread.
2. Built for Harsh Marine Environments
- IP68 waterproof and dustproof rating for extreme durability.
- Powder-coated aluminum housing and Makrolon lens for corrosion and impact resistance.
3. Energy-Efficient & Reliable Performance
- High-output HICOB LED array provides maximum brightness with reduced power consumption.
- Internal driver design optimizes heat management for peak efficiency.
4. Versatile Control & Installation
- Compatible with On/Off switches, ECLIPSE Command Center, and EOS-LUX Command Center.
- Easy 2-wire connection (3-wire when using EOS-LUX Command Center).
- Wide voltage range (10.5V - 31V DC) for universal marine compatibility.
Technical Specifications
| Feature | Specification |
|---|---|
| Available Colors | White (5500K) |
| Lumens | 71,280 |
| Fixture Lumens | 31,680 |
| Number & Type of LED | 80 x 10W White LED |
| LED Power HICOB Array | Yes |
| Typical LED Life | 50,000+ Hours |
| User Control Options | On/Off Switch (Third-party supplied), ECLIPSE Command Center, EOS-LUX Command Center |
| Electrical Installation | Simple 2-Wire Connection (3-Wire for EOS-LUX Command Center) |
| Housing Type | Powder-Coated Aluminum Body with Makrolon Lens |
| Driver | Internal |
| Supply Voltage Range | 10.5—31V DC |
| Max Current Draw (12V/24V) | 25.7A / 12.8A |
| Beam Angle | 9° (Vertical) x 45° (Horizontal) |
| Water Ingress Protection Rating | IP68 |
Perfect For:
🚤 Decks & T-Tops – Illuminate large areas with powerful white light.
⚓ Fishing Towers & Work Areas – Maximize visibility for nighttime fishing and maintenance.
🌊 Offshore & Coastal Boats – Built to withstand extreme marine environments.
🛥️ Security & Navigation Lighting – Reliable illumination for safety and visibility.
Effortless Installation & Control
1️⃣ Choose Your Control Method: On/Off Switch, ECLIPSE Command Center, or EOS-LUX Command Center.
2️⃣ Connect the Wires: 2-wire hookup for standard use, 3-wire for EOS-LUX control.
3️⃣ Secure the Fixture: Mount to T-Tops, hardtops, towers, or decks for optimal visibility.
4️⃣ Enjoy Brilliant Illumination: Activate 31,680 lumens of crisp white light for ultimate marine lighting.
Why Choose the Lumishore 40" Light Bar?
✔ Unmatched Brightness: 31,680 fixture lumens and 71,280 raw lumens for superior illumination.
✔ Wide Coverage Beam Angle: 9° vertical x 45° horizontal beam pattern for broad, even light distribution.
✔ Marine-Grade Durability: IP68 waterproof and dustproof, with powder-coated aluminum housing and a Makrolon lens.
✔ Advanced LED Technology: 80 x 10W high-efficiency LEDs in a HICOB array for optimal lighting performance.
✔ Long-Lasting Performance: 50,000+ hour LED lifespan for years of reliable use.
✔ Flexible Control Options: Compatible with On/Off switches, ECLIPSE Command Center, and EOS-LUX Command Center.
✔ Effortless Installation: 2-wire hookup for standard operation, with a 3-wire setup for EOS-LUX Command Center integration.
Upgrade Your Marine Lighting Today!
The Lumishore 40" Light Bar is the perfect solution for boaters and anglers who need powerful, durable, and efficient lighting.
✨ Illuminate your adventure—Order now! ✨
SEO Keywords:
, high-power boat light, EOS-LUX compatible LED, wide-beam marine lighting.
