Lumishore- ECLIPSE 18" White LED Flood Light
Description
Description

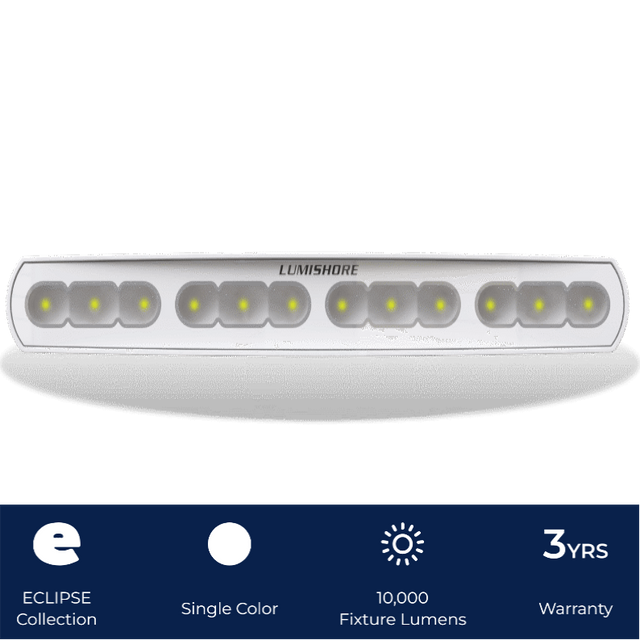

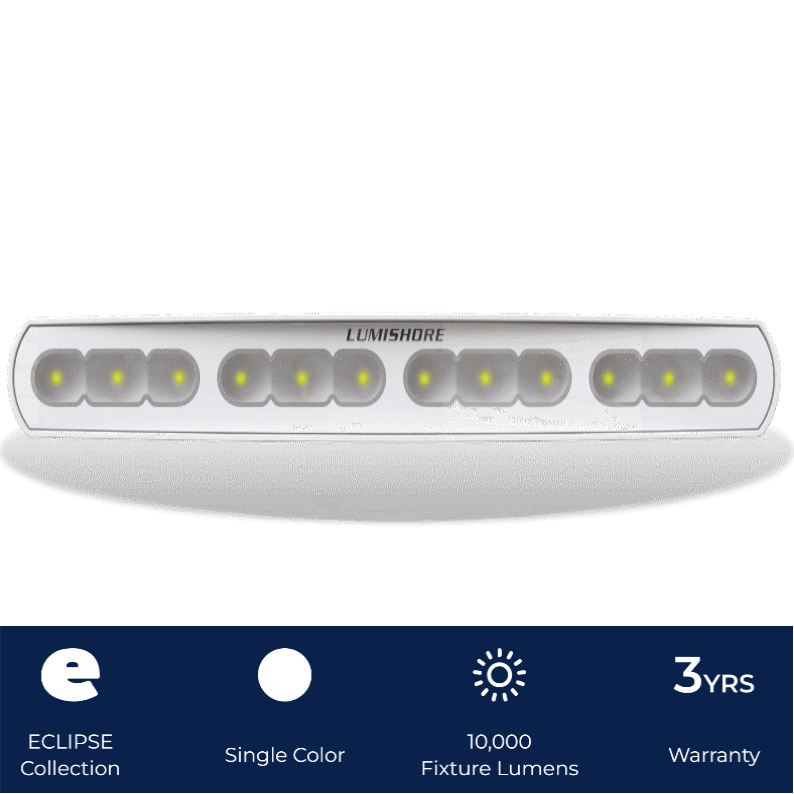

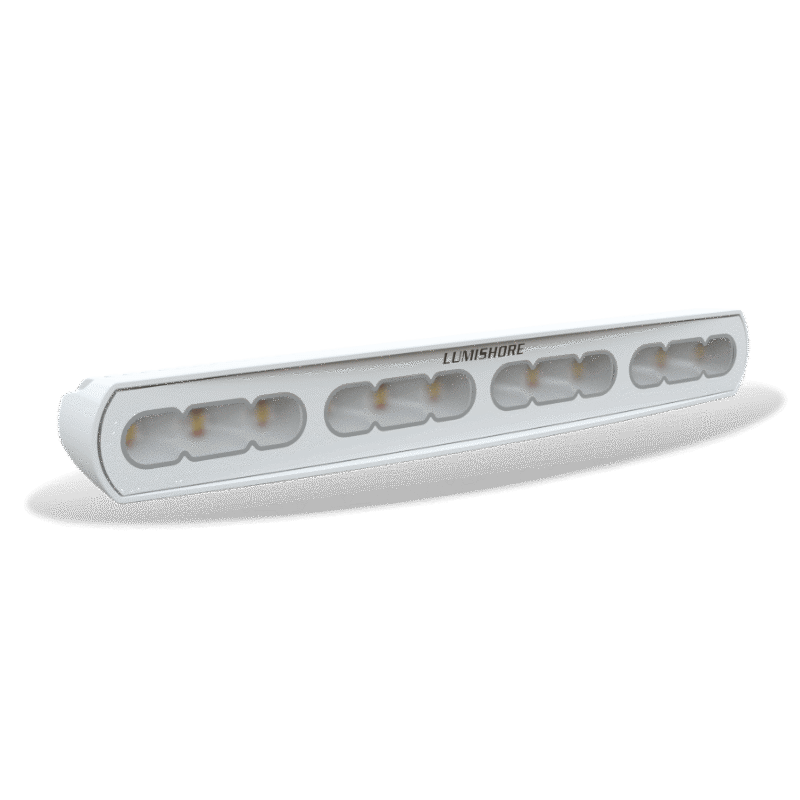

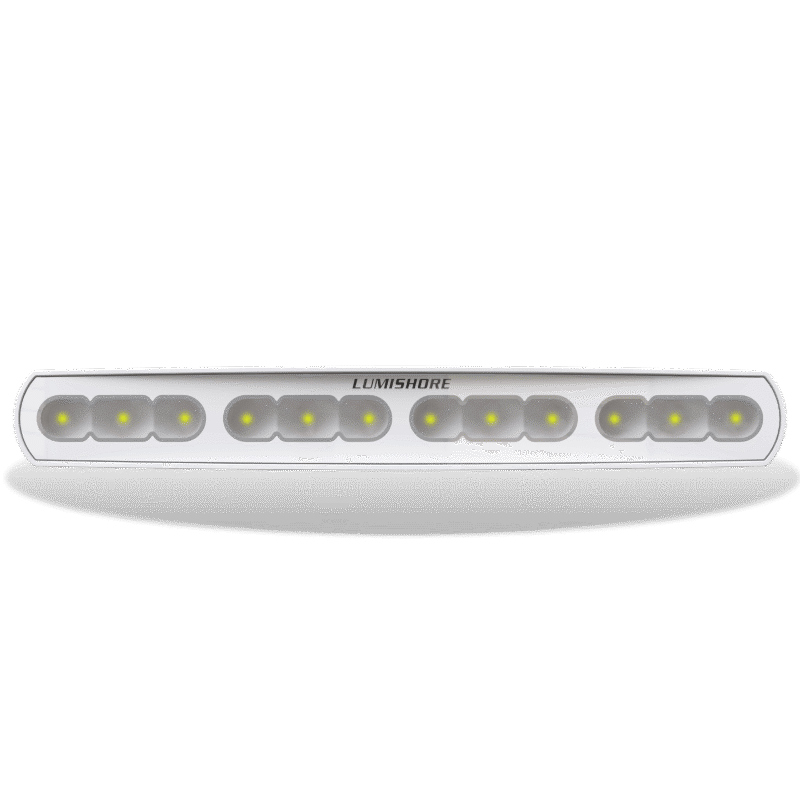

The Lumishore ECLIPSE 18" White LED Flood Light is engineered to provide exceptional brightness and durability, making it the ultimate lighting solution for decks, cockpits, T-Tops, transoms, arches, and radar pedestals. With 10,000 fixture lumens of crisp 5500K white light and a 70°-90° oval beam, this floodlight ensures superior illumination and coverage.
This IP68-rated, marine-grade aluminum floodlight is designed for harsh marine environments and is built to withstand water, dust, and extreme conditions. It blends seamlessly into any vessel in white or black housing while delivering unmatched lighting performance.
Key Features
1. Exceptional Brightness & Coverage
- 10,000 fixture lumens of intense white illumination.
- Wide 70°-90° oval beam angle ensures even light distribution across large areas.
2. Built for Harsh Marine Environments
- IP68 waterproof and dustproof rating provides full protection against water ingress.
- Marine-grade powder-coated aluminum housing ensures maximum durability and corrosion resistance.
3. Energy-Efficient & Long-Lasting Performance
- 3 x 10W high-output LEDs for optimized brightness with minimal power consumption.
- Internal driver design ensures efficient heat dissipation and long-lasting performance.
4. Flexible Control & Installation Options
- Compatible with On/Off switches, ECLIPSE Command Center, and EOS-LUX Command Center.
- Dimmable control is included as a standard for adjustable lighting intensity.
- Simple 2-wire connection (3-wire required for EOS-LUX integration).
Technical Specifications
| Feature | Specification |
|---|---|
| Available Colors | White (5500K) |
| Fixture Lumens (White) | 10,000 |
| Number & Type of LED | 3 x 10W White LED |
| Control Options | On/Off Switch (Third-party supplied), ECLIPSE Command Center, EOS-LUX Command Center |
| Electrical Installation | Simple 2-Wire Connection (3-Wire for ECLIPSE or EOS-LUX Command Center) |
| Supply Voltage Range | 10.5—31V DC |
| Max Current Draw (12V/24V) | 9.2A / 4.6A |
| Beam Angle | 70° - 90° Oval Beam |
| Housing Type | Powder-Coated Aluminum Body |
| Ingress Protection Rating | IP68 |
Perfect For:
🚤 Deck & Cockpit Lighting – Enhance onboard visibility and safety.
⚓ T-Tops, Transoms & Arches – Reliable illumination for all marine applications.
🌊 Offshore & Coastal Boats – Built to endure the toughest marine conditions.
🛥️ Security & Navigation Lighting – Powerful lighting for safety and navigation assistance.
Effortless Installation & Control
1️⃣ Choose Your Control Method: On/Off Switch, ECLIPSE Command Center, or EOS-LUX Command Center.
2️⃣ Connect the Wiring: 2-wire hookup for standard use, 3-wire for EOS-LUX integration.
3️⃣ Mount the Fixture: Secure to decks, hardtops, T-Tops, or transoms for optimal lighting coverage.
4️⃣ Enjoy Brilliant Illumination: Activate 10,000 lumens of crisp white light for maximum visibility.
Upgrade Your Marine Lighting Today!
The Lumishore ECLIPSE 18" White LED Flood Light offers the perfect combination of power, durability, and efficiency, making it the ideal choice for any vessel.
✨ Illuminate your boat with industry-leading LED technology—Order now! ✨
