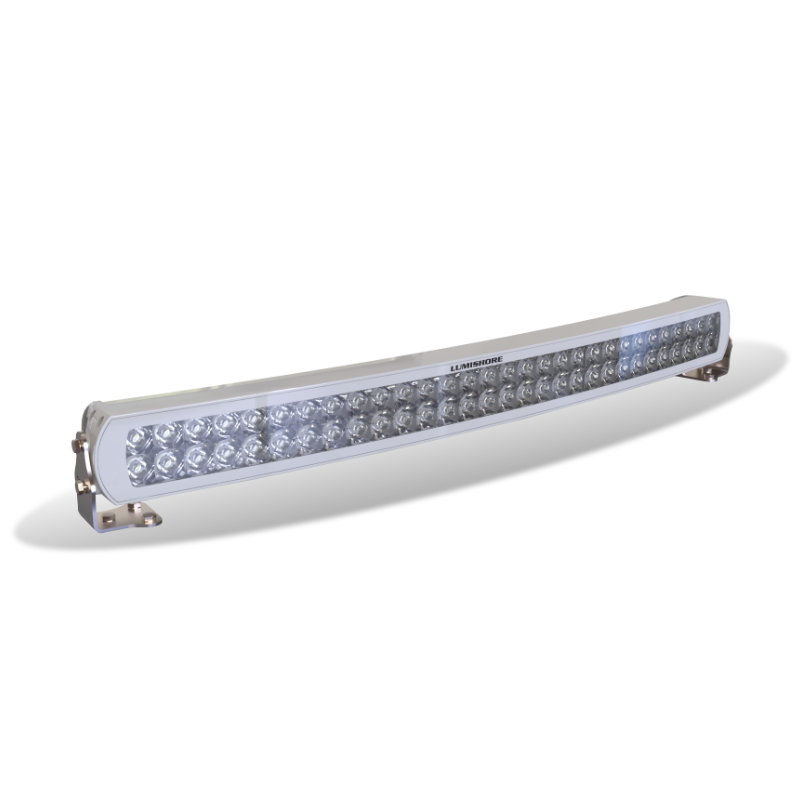

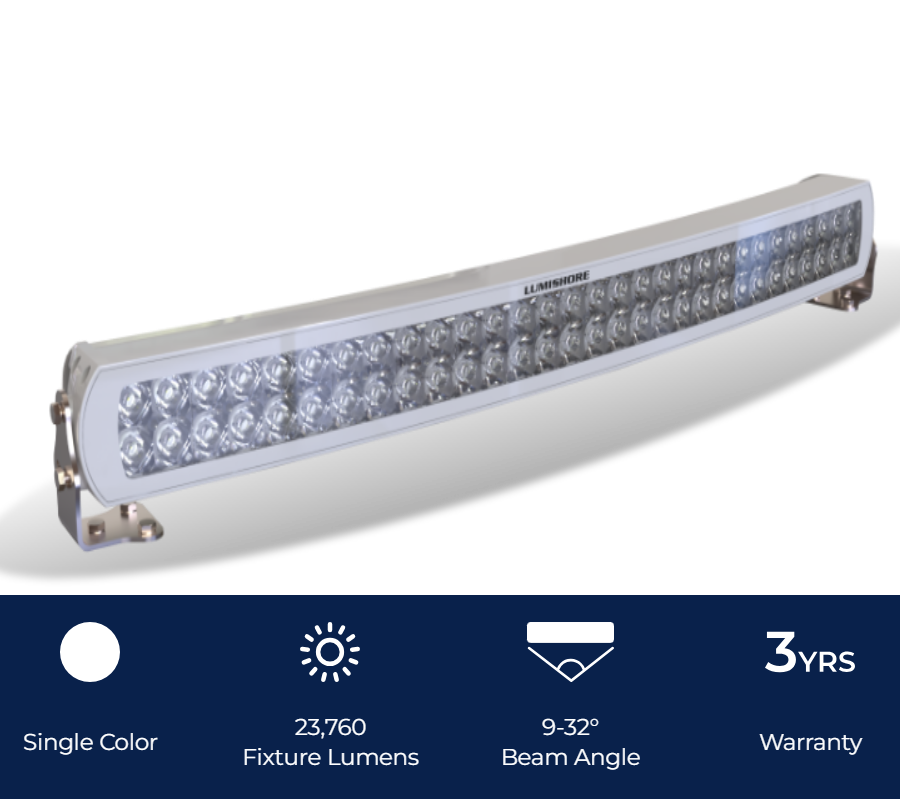

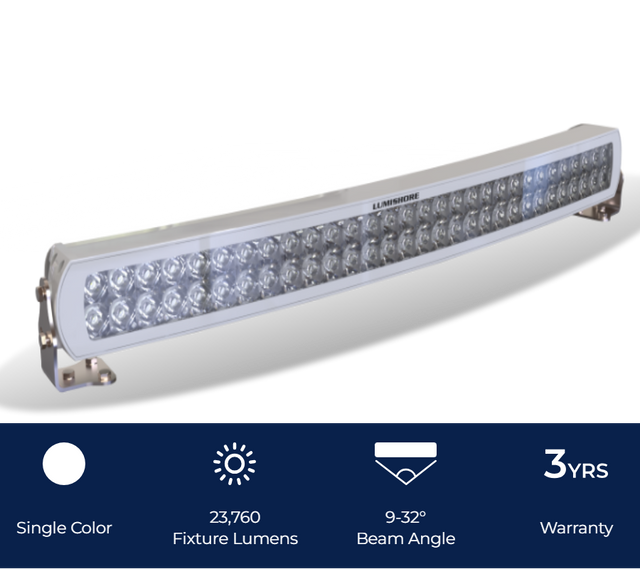

Lumishore - Abovewater LED Spot Light 30"

Single Color Light Bar 30" - White

The 30" Lumishore Light Bar is a powerhouse of illumination, delivering 23,760 fixture lumens of crisp, white light for unmatched visibility. Designed for versatility, this light bar is perfect for illuminating boat decks, T-Tops, fishing towers, and bow platforms, making it ideal for demanding marine applications.

Key Features:

• Exceptional Brightness:

  • Outputs 23,760 fixture lumens of bright white light (5500K).

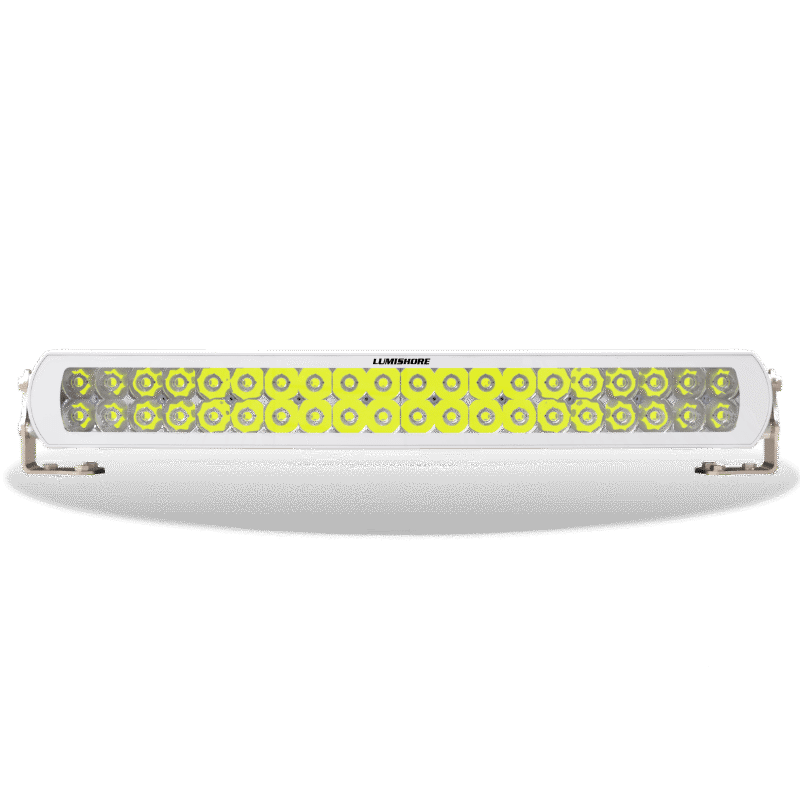

  • Available in multiple sizes (20", 30", 40", 50") for versatile onboard placement.

• Wide Coverage:

  • Beam Angle: 9° vertical x 32° horizontal for a focused yet wide-reaching light spread.

• Rugged Construction:

  • IP68-rated for complete water and dust resistance.
  • Built with marine-grade powder-coated aluminum housing and a Makrolon lens for durability in harsh environments.

• Advanced LED Technology:

  • Features 60 x 10W White LEDs in a high-intensity HICOB array.
  • LED lifespan exceeds 50,000+ hours, ensuring long-term performance.

• Control Options:

  • Operate via On/Off Switch (third-party supplied), ECLIPSE Command Center, or EOS-LUX Command Center.

• Ease of Installation:

  • Simple 2-wire connection.
  • 3-wire connection required for EOS-LUX Command Center control.

Specifications:

• Available Color:
  White (5500K)

• Lumens:
  53,460

• Fixture Lumens:
  23,760

• Number & Type of LED:
  60 x 10W White LEDs

• LED Power HICOB Array:
  Yes

• Typical LED Life:
  50,000+ hours

• Beam Angle:
  9° (vertical) x 32° (horizontal)

• Housing Material:
  Powder-coated aluminum body with Makrolon lens

• Ingress Protection Rating:
  IP68

• Control Options:

  • On/Off Switch
  • ECLIPSE Command Center
  • EOS-LUX Command Center

• Electrical Installation:

  • 2 wires for standard operation
  • 3 wires for EOS-LUX Command Center

• Supply Voltage Range:
  10.5—31 V DC

• Max Current Draw:

  • 19.3 A @ 12V
  • 9.6 A @ 24V

Why Choose the Lumishore 30" Light Bar?
This high-performance light bar offers powerful, long-lasting illumination and rugged construction, perfect for marine environments. With versatile mounting options and cutting-edge LED technology, the Lumishore 30" Light Bar ensures unmatched visibility and safety, making it a must-have for your vessel.
