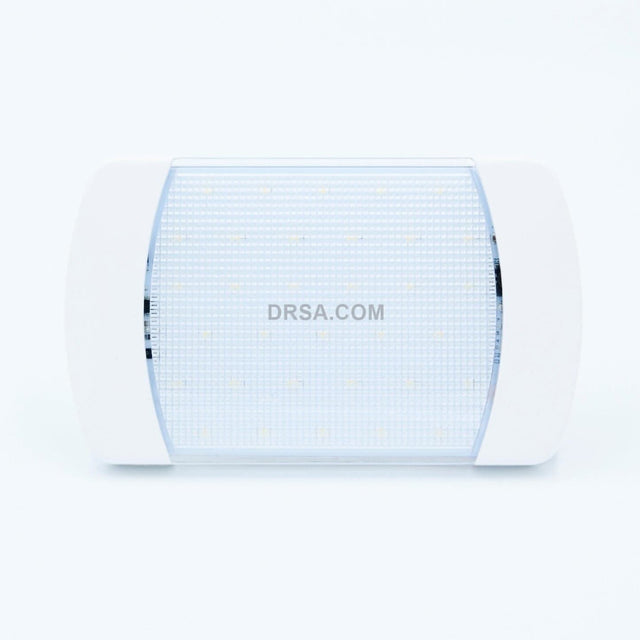

Compact LED Engine Room Light, 10W

Introducing the Scandvik Compact Engine Room Light, a state-of-the-art LED fixture designed to deliver exceptional illumination in marine environments. This surface-mounted light combines energy efficiency with robust construction, ensuring durability and optimal performance in demanding conditions.​

Key Features:

• High Luminous Output: Equipped with 33 high-intensity 2835 LEDs, the E-330 emits 727 lumens of cool white light (5700-6300K), providing clear visibility in engine rooms and utility spaces.​

• Energy Efficiency: Consuming only 10 watts, this light operates efficiently across a voltage range of 10-30 VDC, making it suitable for various marine electrical systems.​

• Durable Construction: Featuring a polycarbonate lens and plastic housing, the E-330 is built to withstand harsh marine environments. Its IP67 rating ensures complete protection against dust and water immersion, enhancing its reliability.​

• Versatile Installation: The surface-mount design allows for flexible wiring options, with the capability for wires to exit from either the bottom or end of the fixture, accommodating diverse installation requirements.​

• Wide Beam Angle: With a 120° beam angle, the E-330 ensures broad and uniform light distribution, effectively illuminating expansive areas within the engine room or utility spaces.​

• Ignition Protection Certified: Complies with SAE J1171 standards and meets USCG, ABYC, and NMMA requirements, ensuring safe operation in environments where flammable gases may be present.



  ​

Technical Specifications:

• Voltage: 10-30 VDC​

• Power Consumption: 10W​

• Current Draw: 0.83 Amps @ 12V DC; 0.42 Amps @ 24V DC​

• LED Configuration: 33 x 0.5W 2835 LEDs

• Color Temperature: Cool White (5700-6300K)​

• Luminous Flux: 727 lumens

• Beam Angle: 120°​

• Housing Material: Polycarbonate lens with plastic housing​

• Ingress Protection Rating: IP67​

The Scandvik E-330 Compact Engine Room Light is an excellent choice for marine professionals seeking reliable and efficient lighting solutions. Its combination of high luminous output, energy efficiency, and robust design ensures optimal performance in various marine applications.​
