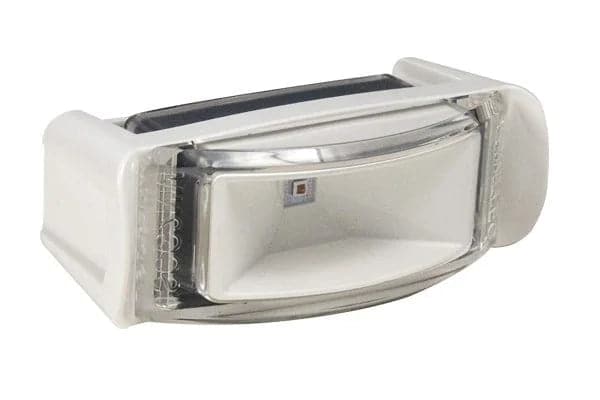

Lumitec Contour Inset Navigation Lights – Port (Red), Starboard (Green), Stern (White) | Seamless Flush-Mount LED
Bring together high performance and seamless design with the Lumitec Contour Inset Navigation Light Series—an elegant, flush-mount lighting solution built for today’s modern vessels. This trio of lights (Port, Starboard, and Stern) offers a sleek, minimalist design that integrates perfectly into hardtops, arches, and pilothouses—enhancing your vessel's appearance while maintaining full U.S. Coast Guard compliance for navigation.
Each light in the Contour Inset Series is engineered for fast installation, with CAD tooling support available for OEMs and custom boat builders. The clean, low-profile design eliminates visible fasteners while delivering powerful visibility up to 2 nautical miles—all in an IP67-rated, marine-grade construction.
🔧 Key Features
-
Ultra-Sleek Flush Design
Symmetrical inset mounting offers a flawless, factory-installed look. -
USCG Certified to 2NM
Meets navigation light requirements for vessels up to 50m (165 feet). -
Versatile Marine Applications
Compatible with hardtops, radar arches, pilothouses, and molded housings. -
Low Power, High Performance
Energy-efficient LED output draws minimal current while providing full navigational visibility. -
Easy OEM Installation
CAD tooling files available for integration during manufacturing or retrofits. -
Marine-Tough Durability
Sealed to IP67 standards to withstand salt, spray, UV, and temperature extremes.
⚓ Available Variants
| Type | Light Output | SKU | 12V Amps | 24V Amps |
|---|---|---|---|---|
| Port | Red | 101846 | 18mA | 12mA |
| Starboard | Green | 101836 | 34mA | 17mA |
| Stern | White | 101866 | 50mA | 25mA |
📊 Technical Specifications
| Feature | Specification |
|---|---|
| Voltage | 10–30V DC |
| Power Draw | Avg. 1.5W |
| Operating Temp | -31°F to 131°F (-35°C to +55°C) |
| Dimensions (H x W x D) | 1 in x 2.67 in x 1.32 in (2.54 cm x 6.78 cm x 3.35 cm) |
| Ingress Protection | IP67 |
| USCG Rating | 2NM for vessels up to 50m (165 ft) |
| Certifications | CE Certified |
| Dimming Protocols | Not PLI, TTP, or 3PD Compatible |
| Control Type | 2-Wire On/Off |
| Finish | White Housing |
| Mounting Style | Inset (Flush) |
| Subcategory | Navigation Lights |
🛡️ WARRANTY:
5-YEAR WARRANTY (From Jan 2025)
